JavaScript Loader Indicator

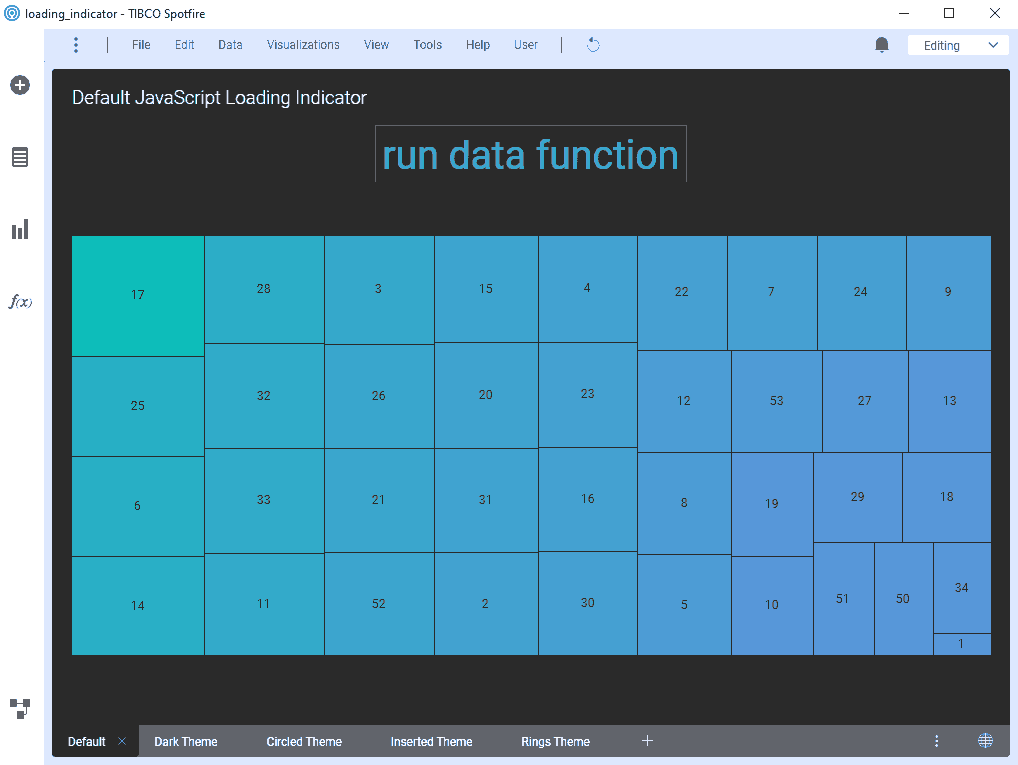

 Sometimes is not obvious for the new user when something is running on the background. This shows a bigger progress indicator. It shows when the bottom right loader is spinning and hides otherwise.


You can customize your message with anything inside the outer div:

html

<div id="javascriptLoader">

  <h1>Loading</h1>
  <h4>Default theme</h4>
  <p>This loader overrides the default Spotfire loader
    <img height=86 src = "https://c.tenor.com/On7kvXhzml4AAAAj/loading-gif.gif">
  </p>

</div>


js
//script parameters

customLoaderId = "javascriptLoader"

//Where is that spinning icon on the bottom right corner of the screen?
target = document.querySelector("[class^='sf-svg-loader']")

loader = document.getElementById(customLoaderId)
loader.hidden=true;

//wrap contents to box for theme
loader.innerHTML = `<div class="box">${loader.innerHTML}</div>`

//Show or hide the loader depending on the target style display state
trigger = function(x){
loader.hidden = target.style.display=="none"
}

//Run the trigger function if the target attribute changes
mutationObserver = new MutationObserver(trigger)
mutationObserver.observe( target , {attributes:true} );

//hide progress overlay
loader.onclick  = function(){
  loader.hidden = true
  console.log("loader was clicked")
}

//add css
css = `
<style>
/* Absolute Center Loader */
#${customLoaderId} {
  position: fixed;
  z-index: 999;
  height: 2em;
  width: 2em;
  overflow: visible;
  margin: auto;
  top: 0;
  left: 0;
  bottom: 0;
  right: 0;
}

/* Transparent Overlay */
#${customLoaderId}:before {
  content: '';
  display: block;
  position: fixed;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  background-color: rgba(0,0,0,0.3);
}

/*default theme*/
#${customLoaderId} .box{
         color:gray;
    background: whitesmoke;
    text-align: center;
    transform: translate(-50%,-50%);
    position: absolute;
    cursor:pointer;
         width:333px;
}
</style>`

loader.insertAdjacentHTML( 'beforeend', css );

6 comments:

nino said...

thanks!! it is efficient for new user.
it works well on spotfire.
but it doesnt on web (MS edge)
How I fix it...?

error :
Execution of Javascript failed:
Message: Failes to execute 'observe' on 'MutationObserver': parameter 1 is not of type 'Node'

Jose Leviaguirre said...

Hello Nino. Try adapting this code to the one published and let me know if you were sucessful

progress = Spotfire.Progress.createProgressOverlay();
progress.setText("Loading, please wait");
setTimeout(function(){
progress.node().remove();
},3000);

Romain said...

Hi , thank a lot for this code !!
I was wondering why the GIF animation is not loading properly. Instead of the animation, only a bad icon is displayed.

Jose Leviaguirre said...

Make sure Romain, that you have access to the resource image.

Krista Clooney said...

This works well, thank you very much! Do you know if there is a way to provide an audible alert to the user once their dashboard has finished reloading all data sources?

Jose Leviaguirre said...

Hello Krista. Yes, you can do something like this. Just modify the trigger function

trigger = function(x){
loader.hidden = target.style.display=="none"
if (loader.hidden ) (new Audio("https://freesound.org/data/previews/187/187025_2567799-lq.mp3")).play();

}
